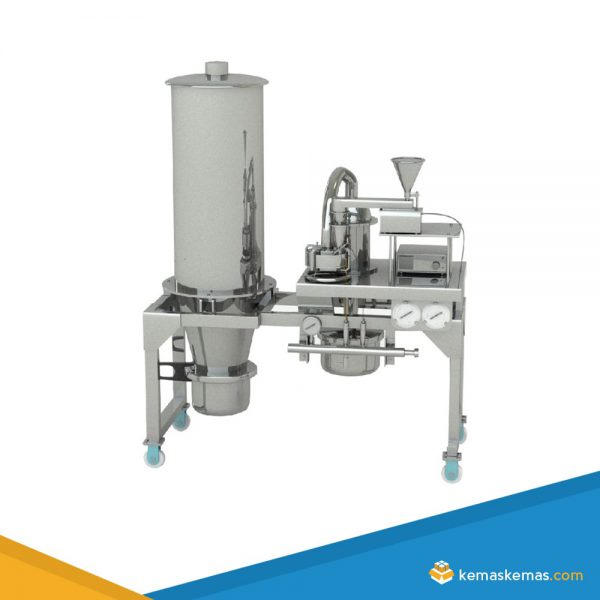

Super Fine Crusher Machine Airflow Crusher QS-100

Specification :

Grinding Press : 0.6 – 0.9 Mpa
Feed Pressure : 0.6 – 0.9 Mpa
Air Volume : 1.1 – 1.55 m cubic/min
Handing Capacity : 2 – 10 kg/h
Crushing Fineness : 300 – 2000 mesh
Motor Power of Air Compressor : 13 – 15 kw
Overall Dimension : 1320x620x1600 mm

Compare

Product Description

Main Application :

This machine is applied for pharmaceutical, chemical, foodstuff, minerals, pesticides, paint, fuel, new ceramic, magnetic and other brittle material ultra-fine crushing. Especially for small businesses experimental quantity and variety production.

Working Principle :

This machine is used for compressing gases. through feed sprayer, made powder materials (near 60 mesh) which fall from automatic feeder come into mill evenly and continuously. Meanwhile, by the pulverizing nozzles at the periphery of the pulverizing room, compressed gas from high-speed air flow, then spray into the pulverizing room , make powder particles impact and rub each other, this attain pulverization goal. After pulverized, the greater pare of the ultra-fine particles are collected under the cyclone separator, part of further fine particles are collected into filter collector and gases discharge through filter. This machine is simple structure, small volume, easy cleaning.



Specification :

Grinding Press : 0.6 – 0.9 Mpa
Feed Pressure : 0.6 – 0.9 Mpa
Air Volume : 1.1 – 1.55 m cubic/min
Handing Capacity : 2 – 10 kg/h
Crushing Fineness : 300 – 2000 mesh
Motor Power of Air Compressor : 13 – 15 kw
Overall Dimension : 1320x620x1600 mm



Untuk pengiriman diluar jakarta, kami bisa membantu mengirimkan melalui ekspedisi yang lebih murah seperti :
– Pahala ekspress
– Dakota
– Dll.

Silakan pilih ekspedisi yang tersedia atau dapat langsung berdiskusi dengan kami untuk pengiriman menggunakan ekspedisi lainnya.
Dan Kami juga menyediakan Service mesin dan Menjual Sparepart Mesin yang Bapak/Ibu butuhkan.
Untuk informasi lebih lanjut dapat menghubungi kami di :
Telp / WA CS1 : +6287881236547
